DISCRIPTION :

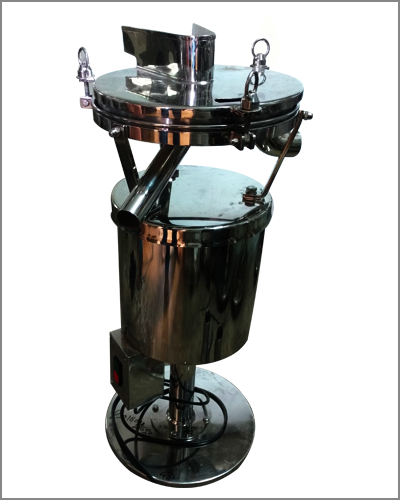

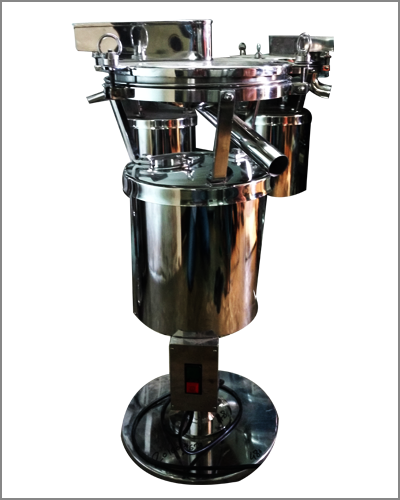

It is used to collect the dust and foreign particles which come out of the compression machine. Normally it is mounted directly at the output of the compression machine.
SALIENT FEATURES :
Specially designed on vibratory motor principle
De-dusting disc penetration dia is 3 mm
Mounted on a set of heavy duty spring and pad
SS 316 Contact parts
Totally encapsulated design and easy to clean
Acrylic window in top guard for process visualization
Proper path to move the tablet
Two nos. of dust collection port
Height adjustment stand design with four wheel
Model | KEEDD |
Output | 8000 to 2,00,000 tab/ hr |
Electric motor | 0.18 KW, 3 phase, 415 VAC, 50 HZ |
Max. tablet diameter | 20 mm |
Min. tablet diameter | 5 mm |
Through put of the tablet | 5 to 120 seconds |
Net weight | 115 kg |
Gross weight | 145 kg |
Machine Dimension in mm | 400 x 800 x 400 |
