Description

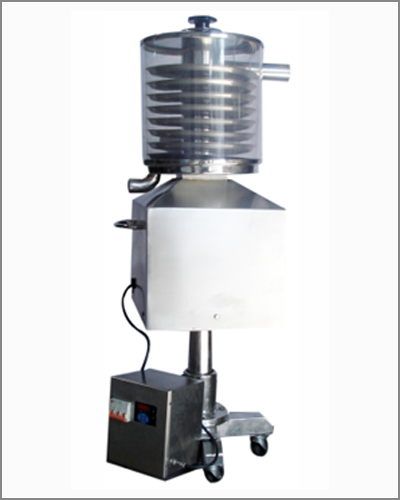

The machine works on the vibratory principle. It is used to remove fine surface dust and edges from the tablet in two stages. In the first stage, the tablets collected from the tablet press onto the bottom screen vibrate around the perforated plate while ascending upwards by approximately 3 meters. In the 2nd stage the tablet is turned over and it ascends against perforated plate by approximately 3 meters. This results in the effective removal of dust and burrs present on the tablet.
Salient Features :
1) Conforms to cGMP
2)SS 316 Contact parts
3)In line compatibility with all the tablet presses
4)Adjustable height and easy mobility
5)Easy to dismantle for cleaning of contact parts
Model | KEEDD |
Output* (for 8 mm tablet) | 5000 to 2,50,000 tab/ hr |
Power supply | 0.18 KW, 3 phase, 415 VAC, 50 HZ |
Max. tablet diameter | 20 mm |
Min. tablet diameter | 4 mm |
Conveying height differential | 235 mm |
Net weight | 110 kg |
Gross weight | 190 kg |
Overall Dimension | 550 x 45 x 115 mm Min/ 130 Max |
Case Dimension | 65 x 55 x 130 mm |
