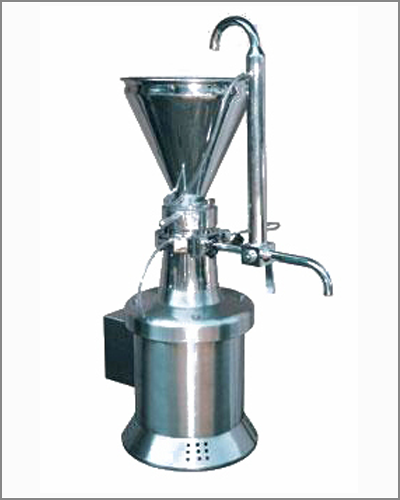

COLLOID MILL is suitable for homogenizing emulsifying dispersing, mixing, comminuting of liquids to highly viscous products. It is based on rotor stator principle, It is avail
OPERATIONS:- Product is feed to the operating areas of a rotor, having a speed of 3000 R.P.M by specially designed feed device. The product is processed by high sheer, pressure and friction between the stator and rotor , the angular gap becomes narrower towards the discharges section. This processed product continuously leaves the mill through the drain pipe, if required, it can be re circulated
SALIENT FEATURES :
All contact parts are made out of S.S. 304 (S.S. 316 on demand at extra cost). No castings are used to avoid contamination problems. • 2 Coupling provided between motor shaft and rotor shaft for ease in maintenance. 3 Three leak proof neoprene sealing device between the motor and the processing chamber to prevent liquid going in the motor winding. 4 Modified design of semi concave teeth in rotor and stator reduces motor h.p. and gives better performance in size reduction without damaging the products. 5 Extended bearing housing specially designed to facilitate fine metal contact of rotor and stator. 6 This unique design provides smooth and consistence all around performance and long life of rotor and stator. 7 Three way cock system for draining and recirculation of the liquids provided as standard. 8 Extra discharge sprout provided as a standard for viscous products. 9 DOL starter with overload relay for protection against single phasing and low voltage. 10 Contact parts can be easily dismantled for cleaning.
SALIENT FEATURES :
MODEL | HORIZONTAL MODEL | VERTICAL MODEL |
Output * | 120 to 12000 Kgs. / Shift. | 120 to 12000 Kgs. / Shift. |
Particle size reduction * | 5 to 10 Microns. | 5 to 10 Microns. |
Hopper capacity | 15 Liters. | 15 Liters. |
Motor | 3 Hp / 2850 RPM / 440 V. 3 Ph. / 50 Hz. AC Supply |
3 Hp / 2850 RPM / 440 V. 3 Ph. / 50 Hz. AC Supply |
Height | 1170 mm | 1200 mm |
Floor space | 390 x 990 mm | 410 x 680 mm |
Net weight (Approx.) | 100 Kgs. | 130 Kgs. |
Gross weight (Approx.) | 108 Kgs. | 220 Kgs. |
Case Dimension | 1040 (L) x 440 (B) x 1230 (H) | 550 (L) x 830 (B) x 1300 (H) |
