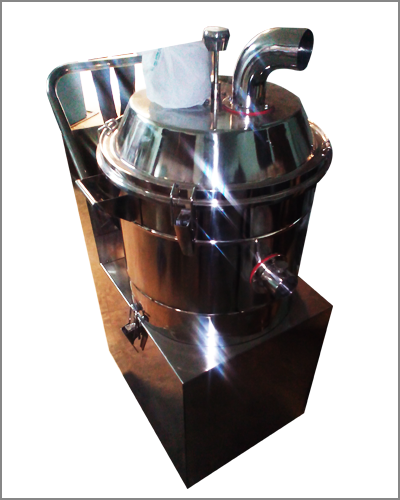

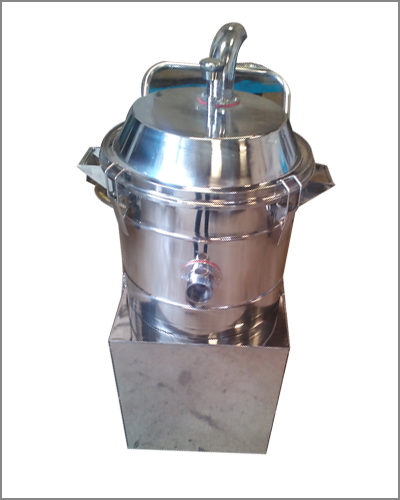

Dust extractor is used for controlling dust generated during tablet compression, tablet de-dusting, granulation & other processes. It avoids product crosscontamination. All contact parts in SS 304/ SS 316 quality. Machine is provided with castor wheels and nos. Of manifold to connect two or three machines at a time.
MODEL | Turbo Model |
Electric Motor | 2 HP, 2800 RPM, 3 Phase, 50 Hz |
Capacity | 300 M³/Hr / 177 Cfm Max |
Pressure | 200 M Bar/ 2.80 PSI Max |
Vacuum | 165 M Bar Max |
Impeller | Made out of Aluminium Die Casting |
Fan Assembly | Made out of Aluminium Casting |
Body | Made out of S S 304 |
Filtration Area | As per your requirement such as from 3 micron to 10 micron |
Shaker | Manual |
Dust Storage Capacity | 45 Liters. |
Suction Capacity | 300 M (500 Mtr. Cube / Hr.) at 125 mm W.G. |
Net Weight | 65000 Kgs |
